HD CCD Wide 190 deg View Angle EU European Car

• Lens Materials: 100% Glass
• Optical Format: CCD 1/3 inch
• Typical Type: High-sensitivity mode for low-light conditions
• System Format: NTSC (Default), PAL(optional, free)
• Power Supply: +12VDC, 150mA

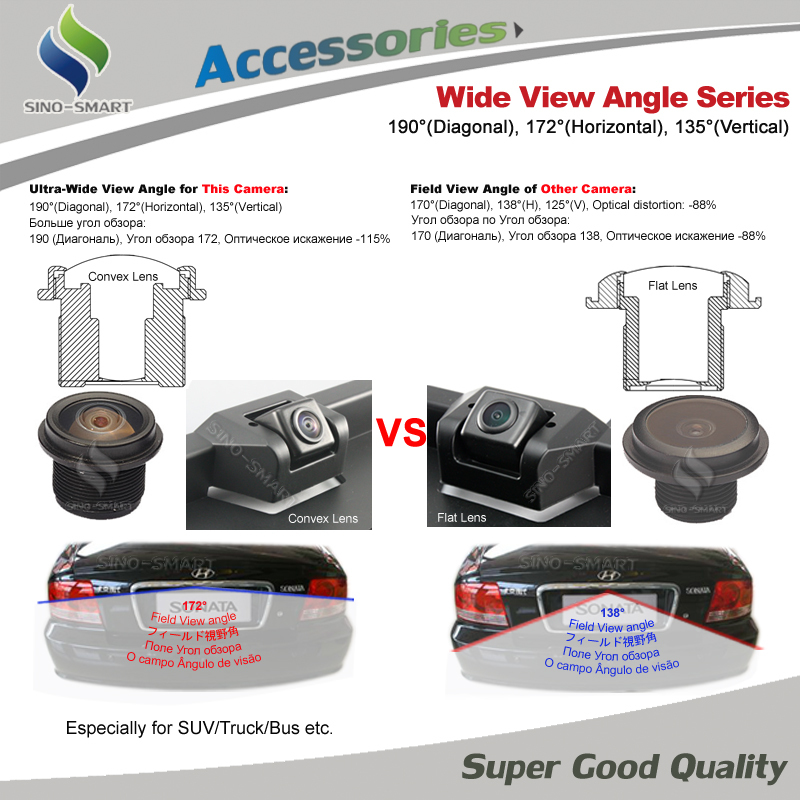

• Field View Angle: 190deg (Diagonal), 172deg (H), 135deg(V)
• Optical Distortion: -115%
• Horizontal Resolution: 520TV lines (Pixels)
• Output : 720H x , 720H x
• Frame Rate: 50/60 fields/sec
• Color Filter Array:  RGB standard Bayer
• Automatic Functions: Exposure, white , black level offset correction and more
• S/N Ratio:  >45dB
• Sensitivity: > 11.5 V/lux-s at 550nm
• Degree of Protection: IP67 (Waterproof)
• Video Cable: 6 meters shielded copper cable (default), 5 meters high temperature cable optional
• Trigger Cable: Built-in
• Parking Line: ON
• Working Time: <=30minutes
• Operation Temperature: -40°C to +80°C (-40°F to 176°F)
• Package: Retail gift box (available for camera size smaller than 15cm/5.9inch)
• Lead Time: 2 to 4 days after payment.
• More Features: Please contact our online sales

The car name we mentioned is just for reference. Because the same brand car in different countries may have some difference, please check the camera size and compare the installation of your car carefully to avoid mistake. Thank you very much for your attention.

Default order : NTSC video output. NTSC version is the most popular format in the world. All digital monitors can be compatible both NTSC & PAL format.

If you want to order PAL signal output, please leave message when you order, it may need another 2-4 days for preparing. (Free)

NOTE:
